  1. Standard App

GEDI Status

PreviousGEDI CodesNextIntermediate Documents Types

Last updated 1 year ago

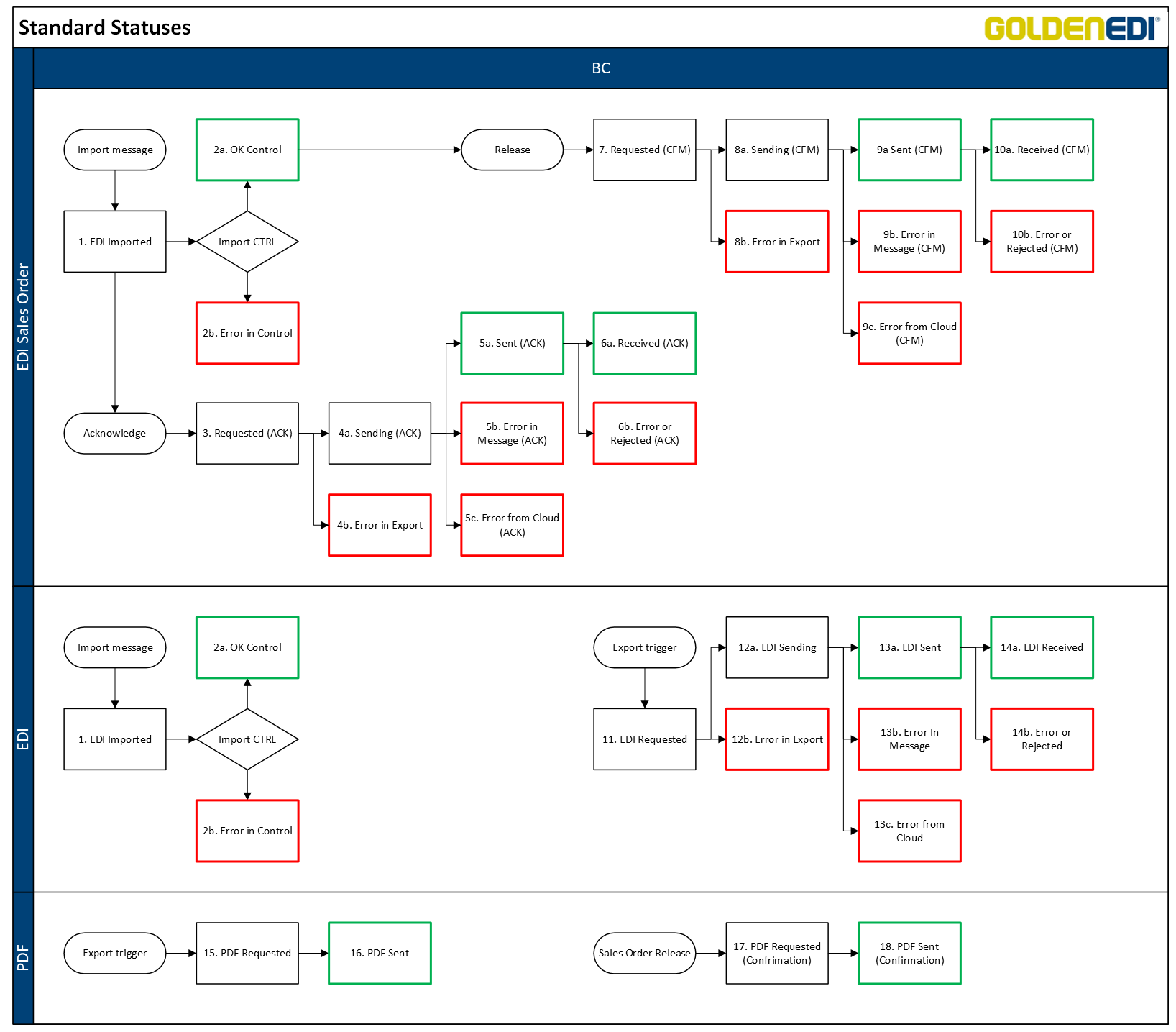

Here you can find a list and description of the standard GEDI statuses. For more information on what a GEDI status is and how it works, please see the section in

#
GEDI Status
Description

1.

EDI Imported

Document is imported via GEDI.

2a.

OK Control

Document was controlled and no comments found.

2b.

Error in Control

Document was controlled an comments were found.

3.

Requested (ACK)

Acknowledge is triggered and in the GEDI message queue waiting processing.

4a.

Sending (ACK)

Acknowledge is processed and waiting to be uploaded to CIP.

4b.

Error in Export

Acknowledge couldn't be processed. Usually a mapping error.

5a.

Sent (ACK)

Acknowledge was uploaded to CIP, processed, and sent to the next party.

5b.

Error in Message (ACK)

Acknowledge couldn't be uploaded to CIP. Usually a structure error in the message.

5c.

Error from Cloud (ACK)

Acknowledge couldn't be processed by CIP. Usually missing information or incorrect information.

6a.

Received (ACK)

Acknowledge was confirmed to be received by the next party.

6b.

Error or Rejected (ACK)

Acknowledge was rejected by the next party. Usually because their validation found an error.

7.

Requested (CFM)

Confirmation is triggered and in the GEDI message queue waiting processing.

8a.

Sending (CFM)

Confirmation is processed and waiting to be uploaded to CIP.

8b.

Error in Export

Confirmation couldn't be processed. Usually a mapping error.

9a.

Sent (CFM)

Confirmation was uploaded to CIP, processed, and sent to the next party.

9b.

Error in Message (CFM)

Confirmation couldn't be uploaded to CIP. Usually a structure error in the message.

9c.

Error from Cloud (CFM)

Confirmation couldn't be processed by CIP. Usually missing information or incorrect information.

10a.

Received (CFM)

Confirmation was confirmed to be received by the next party.

10b.

Error or Rejected (CFM)

Confirmation was rejected by the next party. Usually because their validation found an error.

11.

EDI Requested

Message is triggered and in the GEDI message queue waiting processing.

12a.

EDI Sending

Message is processed and waiting to be uploaded to CIP.

12b.

Error in Export

Message couldn't be processed. Usually a mapping error.

13a.

EDI Sent

Message was uploaded to CIP, processed, and sent to the next party.

13b.

Error in Message

Message couldn't be uploaded to CIP. Usually a structure error in the message.

13c.

Error from Cloud

Message couldn't be processed by CIP. Usually missing information or incorrect information.

14a.

EDI Received

Message was confirmed to be received by the next party.

14b.

Error or Rejected

Message was rejected by the next party. Usually because their validation found an error.

15.

PDF Requested

PDF is triggered and in the GEDI message queue waiting processing.

16.

PDF Sent

PDF is sent via email.

17.

PDF Requested (confirmation)

PDF confirmation is triggered and in the GEDI message queue waiting processing.

18.

PDF Sent (Confirmation)

PDF confirmation is sent via email.
